Wednesday, November 23, 2011

How To Use Gimp To Make a The Tip Jar

In this lesson, I'm going to show you how to make the Tip Jar icon I am using for my donate button shown in the right column of this page. The beauty of the way this image is set up is that you can easily change what color the glass on the jar is, and also easily change the background. As usual, we're using layer masks to get this job done. Here is the final result:
What You'll Need:
Money by ~richardxthripp Jar by ~dropoflight
Gimp Paint Studio (Recommended addon)
Suggested Prerequisites:
An Understanding of Layers
An Understanding of Layer Masks
Another Layer Mask Video (highly recommended)
Free Gimp eBook - Principles of Photo Editing

Part 1: How To Use Gimp To Make the Jar

I felt that this part of the gimp tutorial was a bit tricky, and felt it was best explained as a video.

Part 2: How To Use Gimp To Make the Sticky Note

Create a new file, make it 800X800 pixels. Click on the blend tool set the foreground and background to two different shades of yellow, and create a gradient from the top to the bottom of the image. Your notepad should look something like this:
Although it's very subtle, the gradient makes the note feel more "alive"
Using the text tool, and find a font you like and type TIPS in all capital letters.
Adjust the font size until it is something you're happy with. I used this font.
 Right-click on the text layer, and click "Text To Path" this will create a path from the text you typed.
Create a new layer. Name it TIPSBrush
Make sure you're editing the TIPSBrush layer, and right-click on the newly created path from text and click "path to selection" get your brush tool, and set it to the "chalk" preset. This ONLY works if you have the GPS addon installed.
Set your brush color to black, and fill in the selection with the brush tool so that it creates an effect similiar to my finished notepad shown above.
Click select>>>none underline the text with a single stroke. This is a lot easier with a wacom tablet, but definitely doable with a mouse.

Part 3: How To Use Gimp To Place the Note on the Jar

 right-click on your completed sticky note, and click "new from visible."
This will create a new layer from the visible layers for you to place into your jar.
Simply drag the newly created layer and drop it into the opened jar image.

You should end up with something like this:
That looks good, but the sticky note wouldn't look so perfect. Let's make it look more real.

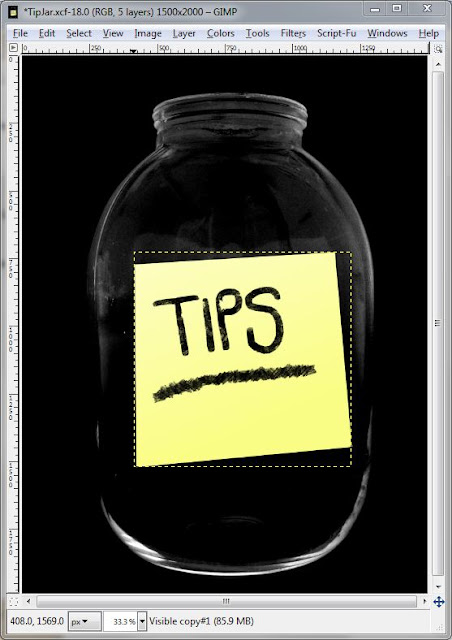

Click on the perspective tool, and then click on the sticky note. Edit it so it looks something like this:
That's better, but the curve of the bottle would make the top have a slight arc.
Add a layer mask to the sticky note, initilize the mask to white.
Using the paths tool, create a path that runs across the top corners in a slight curve like this:
hit the enter key after drawing your path. This should make a selection. If that doesn't work, right click on your path and click "path to selection. Make sure you're editing your sticky note layer mask and fill the selection with black. Click select>>>none (or press CTRL+SHIFT+A). Your image should look like this.
The sticky note looks like it was placed randomly, and looks much more in place now.
Part 4: How To Use Gimp To Add the Money

Open up the money file you previously downloaded.
Using the paths tool, trace the outer edge of the money. This will take a lot of time, be patient.
After your path is completely made, press the enter key to make your selection. Press edit>>>copy or CTRL+C to copy the selected money from the image Switch back to your Tip Jar Press CTRL+V or click edit>>>paste to paste the previously copied money into the image.
In the layers dockable dialog, you will see a new layer has been created called "floating selection." right click on that and click "new layer." this will place the money into your tip jar image.
Rotate the money, and place it behind the jar and notepad image.
Duplicate the money layer. click on the rotate tool, and rotate the duplicated money tool 180 degrees. Move both money layers around until you are happy with you come up with.
You may have to erase some "floating pieces" of money and also hide some straight edges behind the notepad. I ended up with this:
You'll notice I made some tweaks to how the sticky note looks. I used the same tools shown above, but later decided that it didn't look as good as I wanted it to look and started over.
